Your SINGER Starlet 6660

Singer’s instructions rewritten in plain English, with every setting kept exactly as Singer intended, and with tips from our team added along the way. Stuck on something? Ask the Live Sewing Advisor at any point.

This manual applies to UK spec machines.

SINGER Starlet 6660
SINGER Starlet 6660

Main things to know

Getting to know your machine

Important safety instructions

Read all the instructions before using this sewing machine. When using an electrical appliance, basic safety precautions should always be followed, including the ones below.

DANGER - to reduce the risk of electric shock

  • Never leave the machine unattended while it is plugged in. Always unplug it from the socket straight after use and before cleaning.

WARNING - to reduce the risk of burns, fire, electric shock or injury to people

  • Do not let the machine be used as a toy. Take close care when it is used by or near children.
  • This machine is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction on using it by a person responsible for their safety. Children should be supervised to make sure they do not play with the machine.
  • Only use the machine for its intended purpose, as described in this manual. Only use attachments recommended by the manufacturer, as listed in this manual.
  • Never use the machine if the cord or plug is damaged, if it is not working properly, or if it has been dropped, damaged or dropped into water. Take it to your nearest authorised dealer or service centre to be examined, repaired or adjusted, electrically or mechanically.
  • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person, to avoid a hazard.
  • Never use the machine with any of its air openings blocked. Keep the ventilation openings of the machine and the foot control free from lint, dust and loose cloth.
  • Never drop or insert any object into any opening.
  • Indoor use only.
  • Do not use where aerosol (spray) products are being used or where oxygen is being given.
  • To disconnect, turn the power switch to O (off), then take the plug out of the socket.
  • Switch off or unplug the machine when you leave it unattended, and unplug it before carrying out maintenance.
  • Do not unplug by pulling the cord. Hold the plug, not the cord.
  • Keep your fingers away from all moving parts. Take special care around the needle.
  • Never sew with a damaged needle plate - it can make the needle break.
  • Do not use bent needles.
  • Do not pull or push the fabric while sewing. It can bend the needle and make it break.
  • Turn the power switch to O (off) when making any adjustments in the needle area - threading the needle, changing the needle, threading the bobbin, changing the presser foot and so on.
  • Always unplug the machine from the socket when removing covers, oiling, or making any other user servicing adjustment mentioned in this manual.
  • To avoid electric shock, never put the machine, the mains cable or the mains plug into water or any other liquid.
  • The LED light has a maximum power of 0.3W and a maximum voltage of DC 5V. If the LED light is damaged, do not use the machine - send it to the manufacturer or service agent to be repaired or replaced straight away.
  • To avoid injury, unplug the foot control when you leave the machine unattended, and before carrying out any maintenance.
  • Only use the foot control supplied with the machine, or one supplied by an approved SINGER retailer.

CAUTION - moving parts

To reduce the risk of injury, switch off before servicing. Close the cover before using the machine.

Please note that at the end of its life this product must be recycled safely, in line with the national rules for electrical and electronic products. If in doubt, contact your retailer for guidance.

NoteThis sewing machine is for household use, or equivalent. Please keep these instructions. This manual can be printed.

Parts of the machine

  1. Bobbin winding tension disc
  2. Thread take-up lever
  3. Thread tension control (dial)
  4. Face cover
  5. Thread cutter
  6. Removable extension table / accessory box
  7. Bobbin winder shaft
  8. Bobbin winder stop
  9. Pattern number reference guide - the chart of stitch numbers
  10. Reverse stitch button
  11. Handle
  12. Horizontal spool pin
  13. Handwheel
  14. Power/light switch
  15. Cord socket
  16. Identification plate
  17. Thread guide
  18. Buttonhole lever
  19. Presser foot lifter
  20. Thread guide
  21. Automatic needle threader
  22. Thread guide
  23. Presser foot screw
  24. Needle
  25. Needle plate
  26. Needle bar
  27. Thread cutter
  28. Foot release lever
  29. Needle clamp screw
  30. Presser foot
  31. Feed dogs (feed teeth)
  32. Large extension table (optional - not supplied)
  33. Power cord
  34. Foot control
  35. Instruction manual
Drawing from the SINGER manual

Accessories

The foot fitted to your machine when it arrives is the general purpose foot. You will use it for most of your sewing.

Supplied with the machine

  1. Needles
  2. Bobbins (Class 15)
  3. Auxiliary spool pin
  4. Spool pin felt discs
  5. Spool pin cap
  6. Buttonhole opener / seam ripper and brush
  7. Screwdriver for the needle plate
  8. Darning plate
  9. Zipper foot
  10. Buttonhole foot

Optional extras (not supplied)

More accessories are available for your machine, for example:

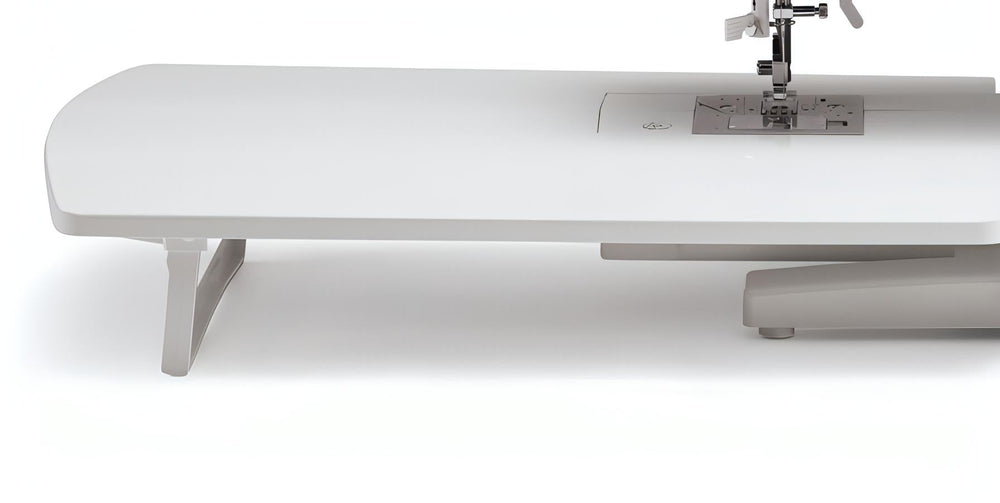

  • Large extension table - Singer lists it as an option for this machineLarge Extension Table£59.99

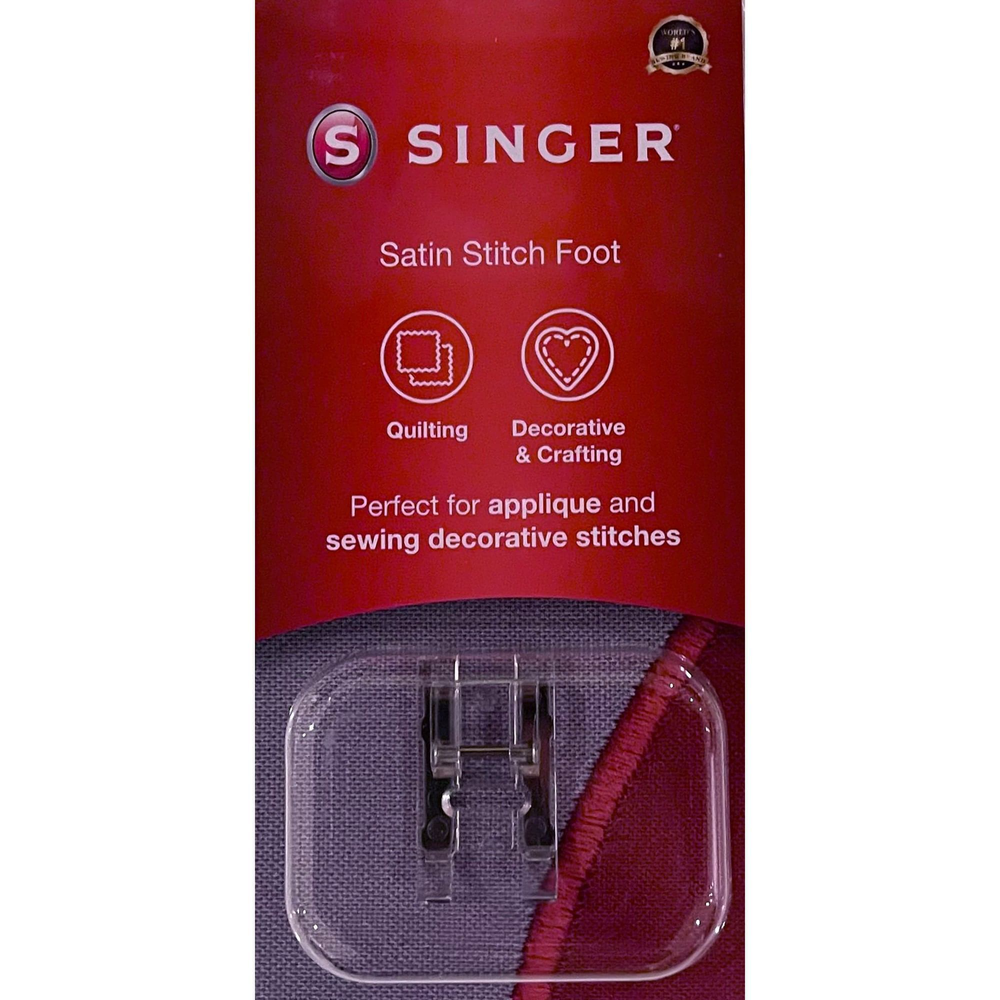

  • Satin stitch foot - Singer says it must be used for dense satin stitchSatin Stitch Foot£14.99

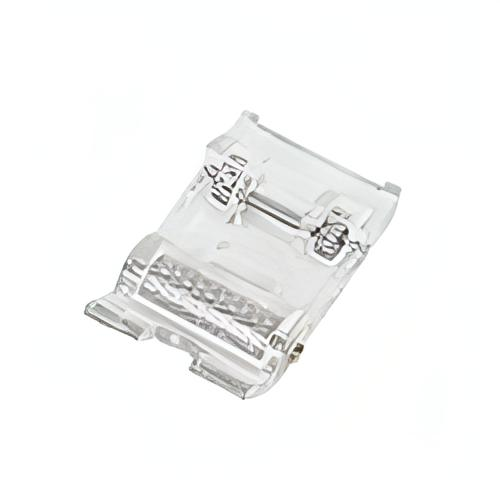

  • Roller foot - for leather, PVC and other sticky fabricsRoller Foot£11.99
  • Invisible zipper footInvisible Zipper Foot£11.99
  • Blind hem footBlind Hem Foot£11.99
  • Overcasting footOvercasting Foot£11.99
  • Walking footWalking Foot£29.99
  • 1/4" quilting foot1/4" Quilting Foot£11.99

Useful for this

Large Extension Table£59.99Satin Stitch Foot£14.99Heavy Duty Roller Foot£11.99
Drawing from the SINGER manual

Setting up and connecting to the power

Safety
  • Always disconnect the machine from the power by taking the plug out of the wall socket when you are not using it.

Before you use your machine for the first time, wipe off any spare oil from round the needle plate.

Power cord and foot control

  1. Plug the power cord into the cord socket on the machine (1), then into the wall socket (2).
  2. Plug the foot control plug (3) into the machine socket.
NoteThe machine will not run while the foot control is unplugged.

Power/light switch

Your machine will not run until the power/light switch is turned on. The same switch controls both the power and the light. When servicing the machine, changing needles and so on, the machine must be disconnected from the power.

Safety
  • Only use the foot control supplied with the machine, or one supplied by an approved SINGER retailer.
  • If you are unsure how to connect the machine to the power, ask a qualified electrician.
Drawing from the SINGER manual
Drawing from the SINGER manual
