Your SINGER One

Singer's instructions rewritten in plain English, with every setting kept exactly as Singer intended, and with tips from our team added along the way. Stuck on something? Ask the Live Sewing Advisor at any point.

This manual applies to UK spec machines.

SINGER One
SINGER One

Main things to know

Leave the tension on AUTOSinger says 90% of your sewing is done with AUTO showing on the tension dial. Only fine-tune it a little either side if the stitch needs it.Class 15 J bobbins, turning anti-clockwiseThe One has a drop-in bobbin under a clear cover. Use Class 15 J bobbins, and drop the bobbin in so it turns anti-clockwise when you pull the thread.A beep or a C code? Check the presser footThe machine beeps and shows C7 if you press the foot control with the presser foot up. Lower the foot and sew. The other codes are listed under Helpful messages.Reverse button - two jobsOn straight stitch and zig zag it sews in reverse while you hold it. On every other stitch it sews 4 tiny tacking stitches to tie off.Keep the box and packagingIf your machine ever needs to go to Singer’s warranty department or our service department, it must travel in its original box and inner packaging.

Getting to know your machine

Important safety instructions

When using an electrical appliance, basic safety precautions should always be followed, including the ones below. Read all the instructions before using this sewing machine.

DANGER - to reduce the risk of electric shock

  • Never leave the sewing machine unattended while it is plugged in. Always unplug it from the socket straight after use and before cleaning.

WARNING - to reduce the risk of burns, fire, electric shock or injury

  • Do not let the machine be used as a toy. Take close care when it is used by or near children.
  • This appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction on using it by a person responsible for their safety. Children should be supervised to make sure they do not play with the machine.
  • Only use the machine for its intended purpose, as described in this manual. Only use attachments recommended by the manufacturer, as listed in this manual.
  • Never use the machine if the cord or plug is damaged, if it is not working properly, or if it has been dropped, damaged or dropped into water. Take it to your nearest authorised dealer or service centre to be examined, repaired or adjusted, electrically or mechanically.
  • If the power cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person, to avoid a hazard.
  • Never use the machine with any of its air openings blocked. Keep the ventilation openings of the machine and the foot control free from lint, dust and loose cloth.
  • Never drop or insert any object into any opening.
  • Use indoors only.
  • Do not use where aerosol (spray) products are being used or where oxygen is being given.
  • To disconnect, turn the switch to off (O), then take the plug out of the socket.
  • Switch off or unplug the machine when you leave it unattended. Unplug it before doing any maintenance or replacing lamps.
  • Do not unplug by pulling the cord. Hold the plug, not the cord.
  • Keep your fingers away from all moving parts. Take special care around the needle.
  • Never sew with a damaged needle plate - it can cause the needle to break.
  • Do not use bent needles.
  • Do not pull or push the fabric while sewing. It can bend the needle and make it break.
  • Turn the power switch to O (off) when making any adjustments in the needle area - threading the needle, changing the needle, threading the bobbin, changing the presser foot and so on.
  • Always unplug the machine from the socket when removing covers, oiling, or making any other user servicing adjustment mentioned in this manual.
  • To avoid electric shock, never put the machine, the power cord or the plug into water or any other liquid.
  • The LED lamp's maximum power is 0.3W and maximum voltage DC 5V. If the LED lamp is damaged, stop using the machine and send it to the manufacturer or service agent to be repaired or replaced straight away.
  • Caution - to avoid injury, unplug the foot control when you leave the machine unattended, and before carrying out any maintenance.
  • Caution - moving parts. To reduce the risk of injury, switch off before servicing. Close the cover before using the machine.
  • Only use the foot control supplied with the machine, or one supplied by an approved SINGER retailer.
NoteThis product is for household use, or equivalent. Please keep these instructions. When you dispose of the machine, it must be recycled safely in line with the rules for electrical and electronic products - if in doubt, ask your retailer. This manual can be printed.

Parts of the machine

  1. Pre-tension guide
  2. Bobbin winding tension disc
  3. Thread tension control
  4. Threading lever (for the automatic needle threader)
  5. Face cover
  6. Thread cutter / holder
  7. Extension table (accessory box)
  8. Bobbin winder shaft
  9. Bobbin winder stop
  10. Reverse stitch button
  11. Horizontal spool pin
  12. Handle
  13. Handwheel
  14. Power / light switch
  15. Cord socket
  16. Identification plate
  17. Extension table release button
  18. Presser foot lifter
  19. Buttonhole lever
  20. Twin thread guide
  21. Thread guide
  22. Presser foot screw
  23. Needle
  24. Bobbin cover plate
  25. Needle bar
  26. Alternate thread cutter
  27. Foot release button
  28. Needle clamp screw
  29. Presser foot
  30. Feed dogs
  31. Needle plate
  32. Bobbin cover release button
  33. Power cord
  34. Foot control
  35. Instruction manual
Drawing from the SINGER manual

Accessories

Supplied with the machine

  1. Needles
  2. Bobbins - when you buy more, make sure they are Class 15 J
  3. Auxiliary spool pin
  4. Spool pin felt discs
  5. Spool pin cap (small)
  6. Spool pin cap (medium)
  7. Spool pin cap (large)
  8. Buttonhole opener / seam ripper and brush
  9. Screwdriver for the needle plate
  10. Zipper foot
  11. Satin stitch foot
  12. Blind hem stitch foot
  13. Buttonhole foot

The foot that comes on the machine is the general purpose foot, and you will use it for most of your sewing. The satin stitch foot (11) is another very useful foot - use it for most of your decorative sewing, especially stitches like honeycomb and star.

Optional extras (not supplied)

  • SINGER 3mm twin needle (style 2025) - Singer's recommended twin needle for this machine
  • SINGER wing needle (style 2040) - for the entredeux stitch

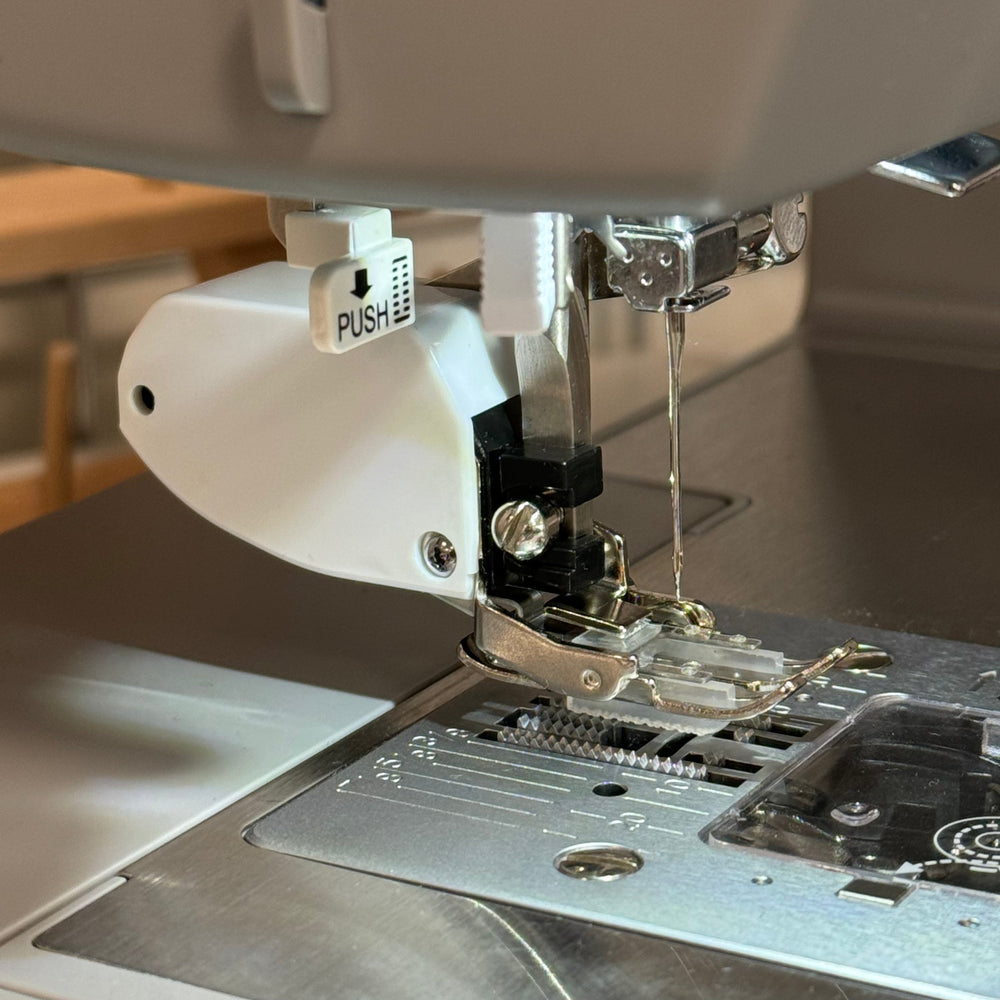

  • Walking footWalking Foot£29.99

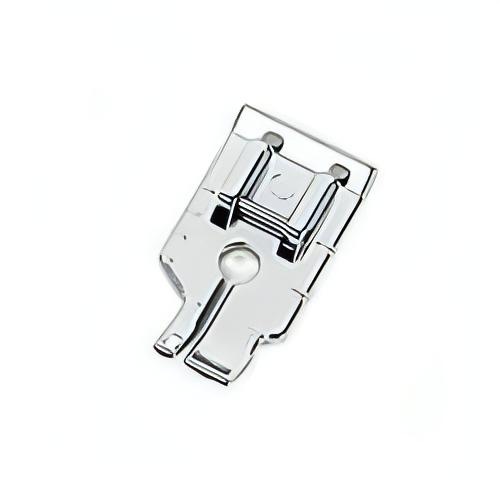

  • 1/4" quilting foot1/4" Quilting Foot£11.99

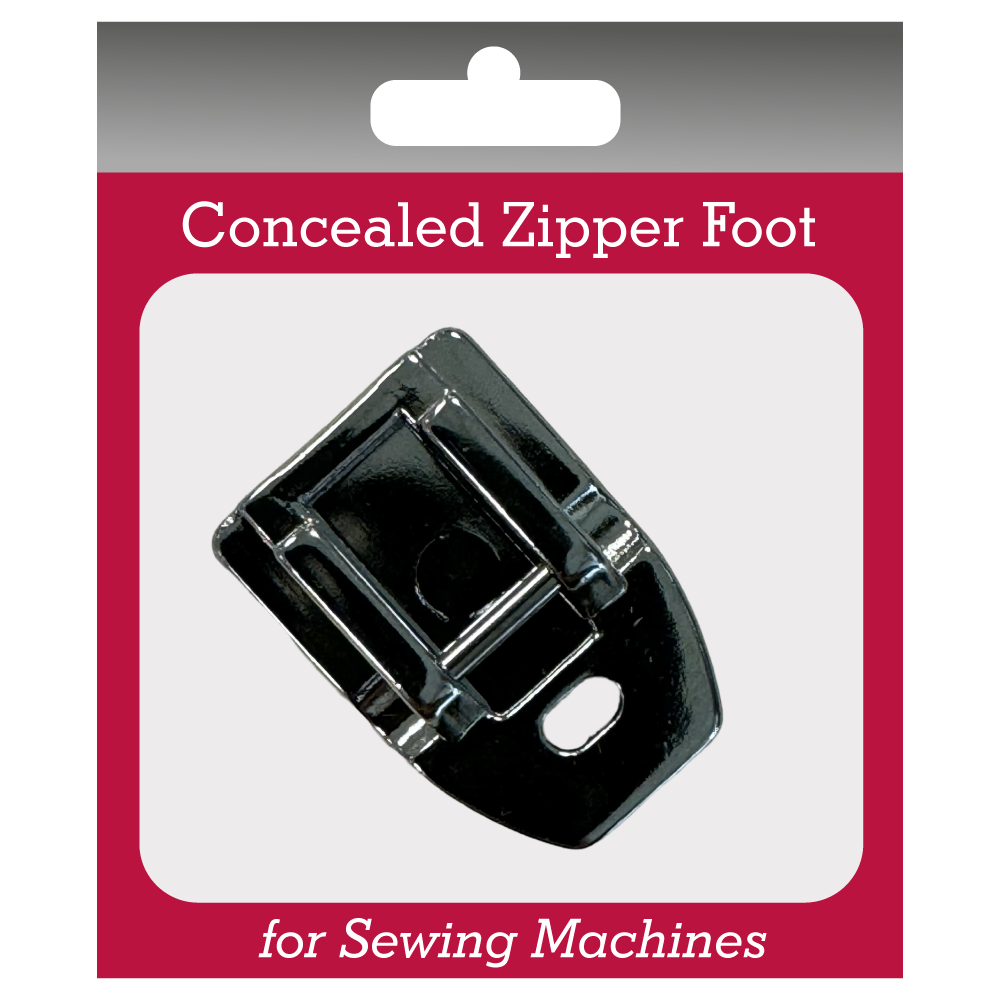

  • Invisible zipper footInvisible Zipper Foot£11.99

Useful for this

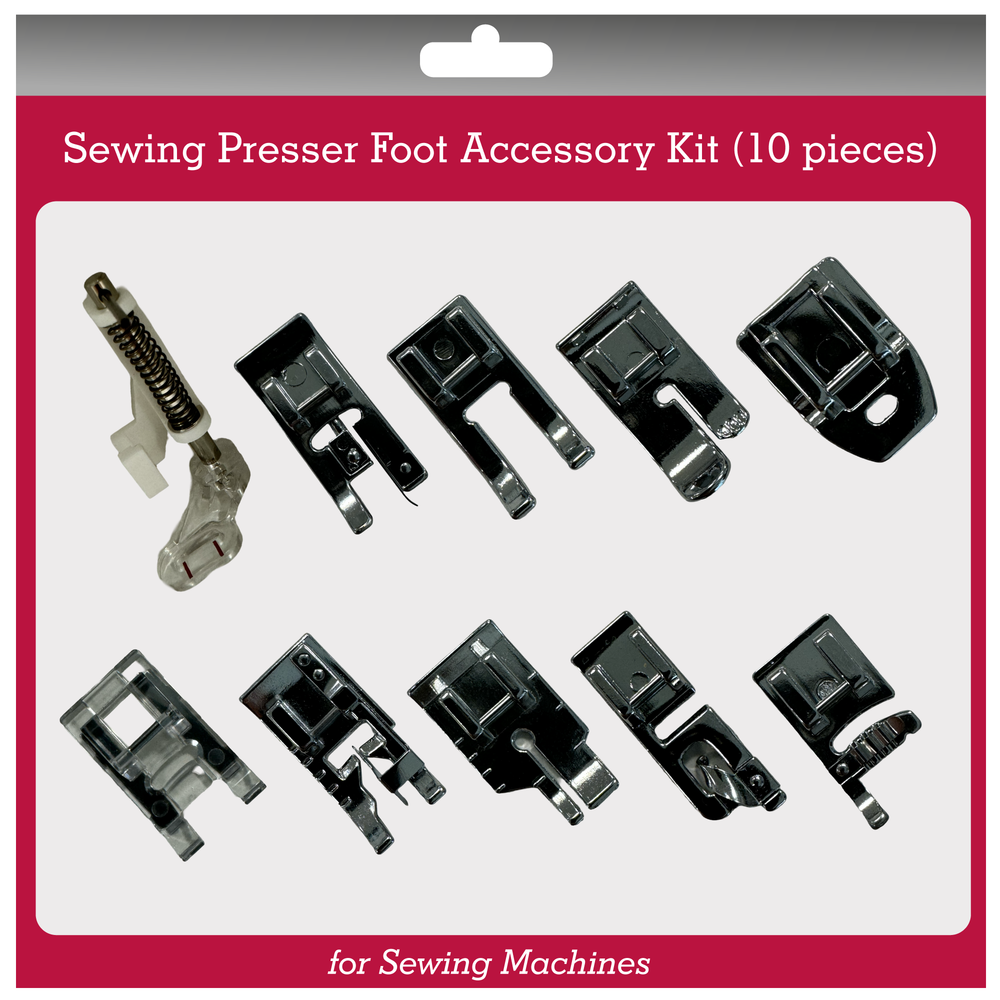

10-piece Presser Foot Kit£29.99Walking Foot (Even Feed)£29.99
Drawing from the SINGER manual

Setting up and connecting to the power

Before you use the machine for the first time, wipe off any spare oil from the needle plate area.

Power cord and foot control

  1. Set the power / light switch to OFF.
  2. Plug the power cord into the cord socket on the machine (1), then into the wall socket (2), as shown.
  3. Plug the foot control plug (3) into the machine socket.
NoteWhen the foot control is unplugged, the machine will not run.

Power / light switch

The machine will not run until the power / light switch is turned on. The same switch controls both the power and the light.

Safety
  • Always disconnect the machine from the power by taking the plug out of the socket when servicing it, changing needles and so on.
  • Only use the foot control supplied with the machine, or one supplied by an approved SINGER retailer.
Drawing from the SINGER manual

Spool pins

Horizontal spool pin - for normal reels of thread

Put the reel of thread on the pin and hold it in place with a spool cap, so the thread flows smoothly. If the reel has a thread retaining slit, it should be on the right.

Choose the right spool cap (small, medium or large) for the type and size of reel. The spool cap should always be bigger than the end of the reel.

Vertical spool pin - for large reels of thread

Fit the auxiliary spool pin, put a felt disc over it, then put the reel of thread on the pin.

Drawing from the SINGER manual
